Vacuum Capping Machine
-
CategoryFiller / Capper
-
ModelEZC-V700
Features

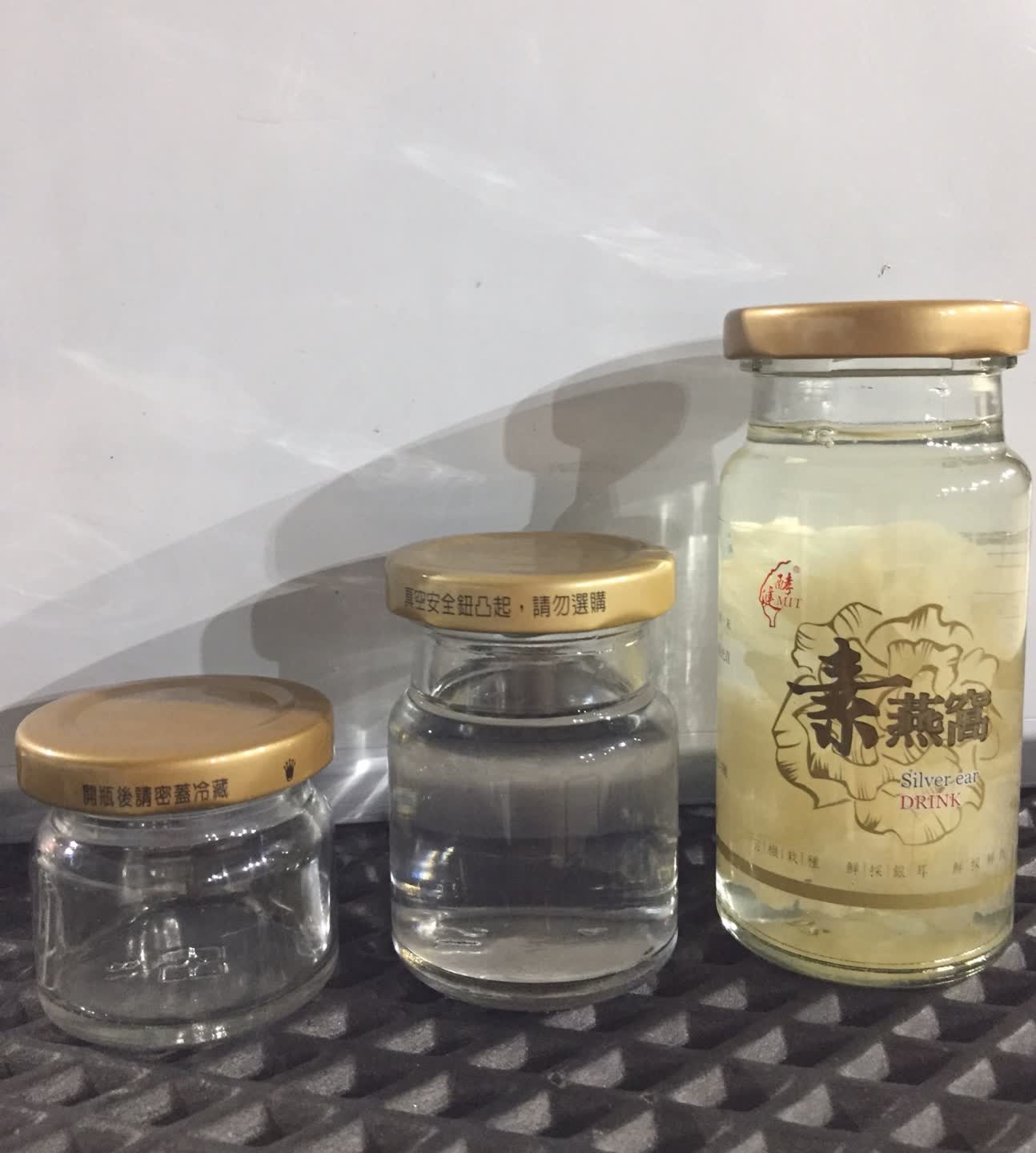

EZC-V700 Vacuum Capping Machine is suitable for all glass threaded bottle orifices; Can products with tinned claws, such as sauce, canned fish, canned fruit, peanut butter, canned bird's nest..., etc.The main structure of the whole machine is made of stainless steel and plastic steel. The capping system adopts servo system.
The torque of machine can be set, controlled and stored on the man-machine interface. According to the different bottle type can be selected with a variety of customized quick disassembling jig, quickly switch the production of different products, improve the flexibility of OEM packaging industry to receive orders, switching products do not need to adjust the machine, man-machine interface integration of multiple groups of formula memory function, vacuum value can be set.
Specification
-
Model
EZC-V700 -
Vacuum value
≥ 0.08 Mpa -
Bottle diameter
30~80 mm (Customizable) -
Bottle height
50~150 mm (Customizable) -
Production capacity
20~25 bpm -
Air requests
0.6 m3/h -
Power supply
220 V, 1 ph , 60 HZ, 1.5 KW -
Weight
150 kgs -
Machine Dimension
750 * 700 * 1,495 mm
